Reliable Quantity Rotary Vibrating Screen Food Additive Cosolvent XZS Series
Introduction
Rotary vibrating screen is a high precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly.
It is fully enclosed and suitable for screening and filtering granular, powder, liquid and other materials.
Working Principle
All vibrating sieve screen machine work with an vibration motor drive.
This drive produces a 3D throwing motion that moves the product to be sieved equally over the whole sieving surface.
Function
1. Sizing: segregate dry power or particles into various sizes.
2. Removing: get rid of a small quantity of impurity.
3. Filtering: solid-liquid separating.
Features of the Rotary Vibrating Screen
1. Function: Screening and filtering any powder or particle material or liquid.
2. Movement Locus: Upwards,Left and Right Motion,Rotation Motion.
3. Sieve Layer: 1-5 Layers,the 1-3 layers is better.
4. Screen Size Range: 10mm-500 mesh.
5. Driven Mode: Vibration Motor Driven.
6. Material: All Carbon Steel, Material Contact Parts are Stainless Steel or All Stainless Steel.

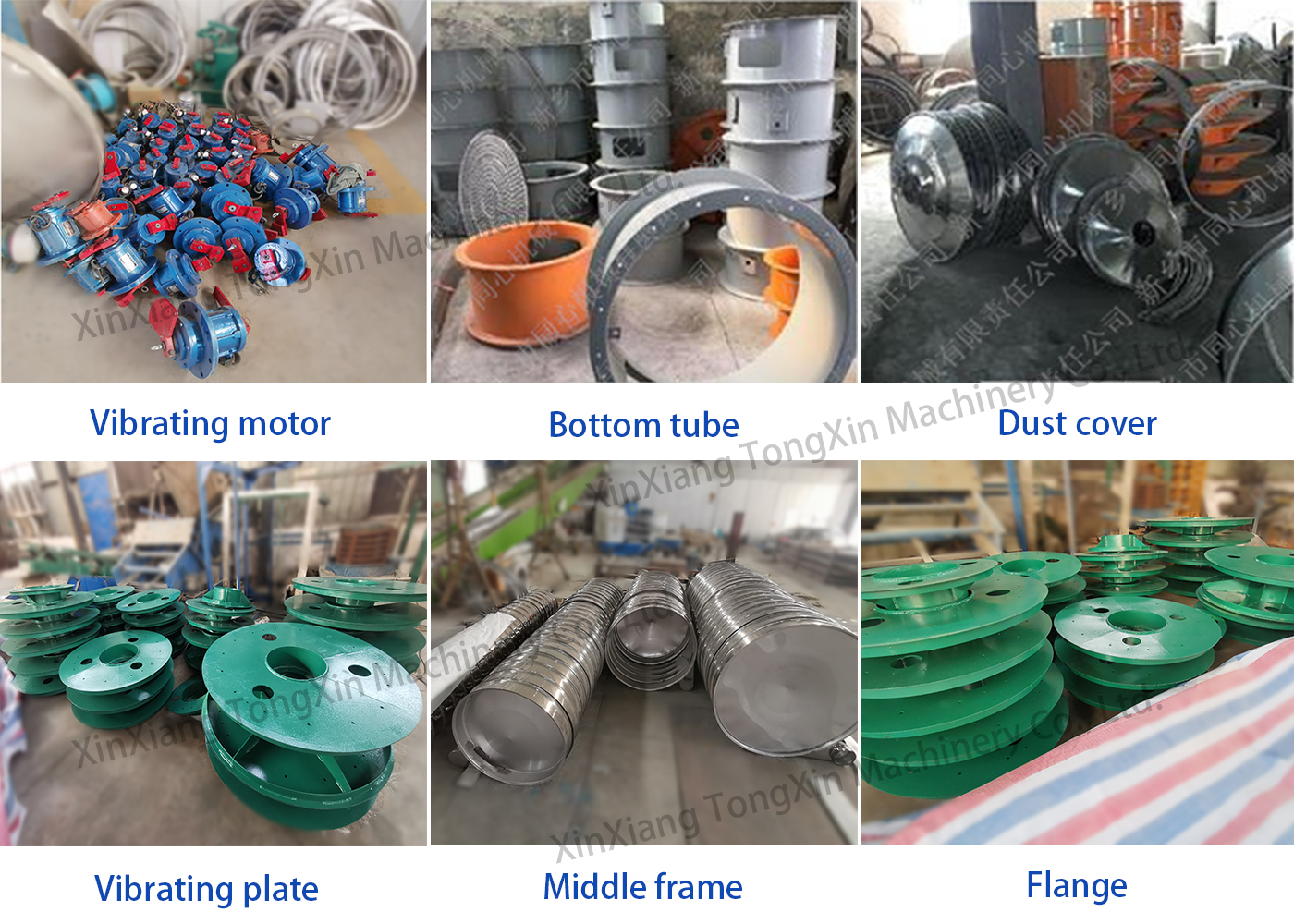

Display of the Spare and Accessory Parts
Apply in Industry
| Size Classification | Separation of particles into groups of comparable size from the materials. |
| Gravity Filtering | Removal of solids from liquids and slurry. |
| Product Reclamation | Removal of the solids from waste product or clarification of waste liquor for further use. |
| Screening | Separation of a few oversize particles from a quantity of materials. |
| Liquid Cleaning | Cleaning of waste water or removing the solids from recirculation liquid |
Technical Parameter
| Model | A | B | C | D | E | F | G | H | I | J | K | L | N |
| XZS-600-1S | 530 | 450 | 150 | 600 | 100 | 80 | 345 | 360 | 315 | 410 | | | 515 |
| XZS-600-2S | 530 | 450 | 150 | 600 | 100 | 80 | 345 | 360 | 315 | 410 | 540 | | 640 |
| XZS-600-3S | 530 | 450 | 150 | 600 | 100 | 80 | 345 | 360 | 315 | 410 | 540 | 670 | 730 |
| XZS-800-1S | 680 | 580 | 200 | 800 | 125 | 90 | 380 | 540 | 370 | 510 | | | 690 |
| XZS-800-2S | 680 | 580 | 200 | 800 | 125 | 90 | 380 | 540 | 370 | 500 | 640 | | 805 |
| XZS-800-3S | 680 | 580 | 200 | 800 | 125 | 90 | 395 | 540 | 385 | 525 | 665 | 805 | 920 |
| XZS-1000-1S | 800 | 700 | 250 | 960 | 150 | 100 | 435 | 643 | 400 | 540 | | | 705 |
| XZS-1000-2S | 800 | 700 | 250 | 960 | 150 | 100 | 425 | 643 | 390 | 530 | 670 | | 850 |
Our Service
1. We Provide video installation instructions;
2. We offer 24-hour online consulting service;
3. 20 years production experience to ensure quality;
4. We have thorough data to ensure the quality;
5. Professional engineers team can choose the right equipment for you;
6. We can provide thorough after-sales service to ensure the proper use of machine.
If you want to get more information of product, please contact us!
