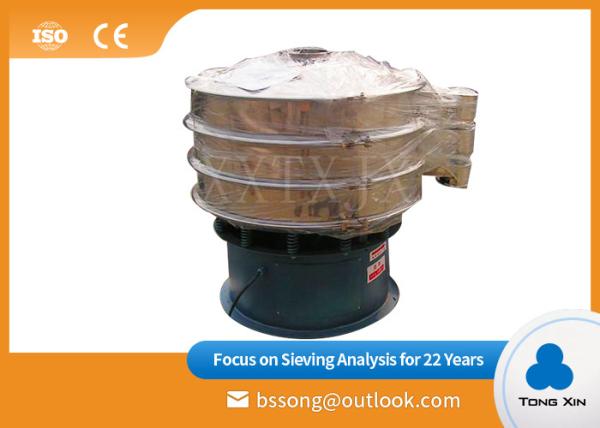

Manufacturer Rotary Vibrating Screen Design Stainless Steel Metallurgy
Introduction
Rotary vibrating screen is a high precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly. It is fully enclosed. It is suitable for screening and filtering granular, powder, liquid and other materials.

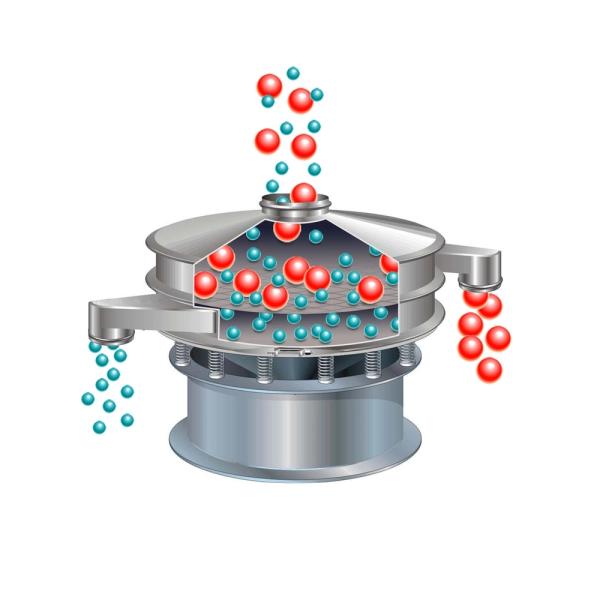

Working Principle
The basic principle of Vibration screening filter is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor’s rotary motion into horizontal, vertical, tilt motion(three-D movement), then this movement passed to the screen surface.
Adjust the upper and lower ends of heavy hammer’s phase angle, this can change the trajectories of materials on the screen surface.
Function
1. Sizing: segregate dry power or particles into various sizes.
2. Removing: get rid of a small quantity of impurity.
3. Filtering: solid-liquid separating.
Advantages and Features
1. Small in size and light in weight
2. High screening accuracy and efficiency
3. The screen is non-blocking and can screen 28 micron materials
4. The screen cloth is easy to change and clean
5. Completely sealed
Specification
Structure of the Rotary Vibrating Screen
The high capacity chemical rotary vibration filter sieve consist of top cover, screen frame, screening mesh, clamp, vibrator, vibration motor, support base, and so on.
Apply in Industry
| Chemical industry | resin pigment, medicine, grease, paint, palette, etc. |
| Abrasive material and ceramic industry | building sand, mica, alumina, abrasive, refractory material, slurry, etc. |
| Food industry | sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. |
| Paper-making industry | coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. |
| Metallurgy and mining industry | quartz sand, ore, titanium oxide, zinc oxide, etc. |
| Mechanical industry | casting sand, powder metallurgy, electromagnetic material and metal powder, etc. |
Working Principle
The following output of the information listed in the table provided by the factory customers, due to changes in various conditions, such as the types of raw materials, shape, powder composition, specific gravity, temperature, humidity, mesh and requirements of the degree of its production will be changed in Therefore, the contents of the following examples for reference only.
Technical Parameter
| XZSφ400 | XZSφ600 | XZSφ800 | XZSφ1000 | XZSφ1200 | XZSφ1500 | XZSφ1800 | XZSφ2000 |
| 0.25 | 0.37 | 1075 | 1.1 | 1.5 | 2.2 | 3.0 | 3.7 |
| φ330 | φ560 | φ760 | φ960 | φ1160 | φ1460 | φ1760 | φ1886 |
| φ400 | φ600 | φ800 | φ1000 | φ1200 | φ1500 | φ1800 | φ2000 |
| 600 | 640 | 790 | 840 | 880 | 1030 | 1640 | 1640 |
| 700 | 740 | 920 | 970 | 1010 | 1180 | 1850 | 1850 |
| 800 | 840 | 1050 | 1100 | 1140 | 1330 | 2060 | 2060 |
If you want to get more information of product, please contact us!
