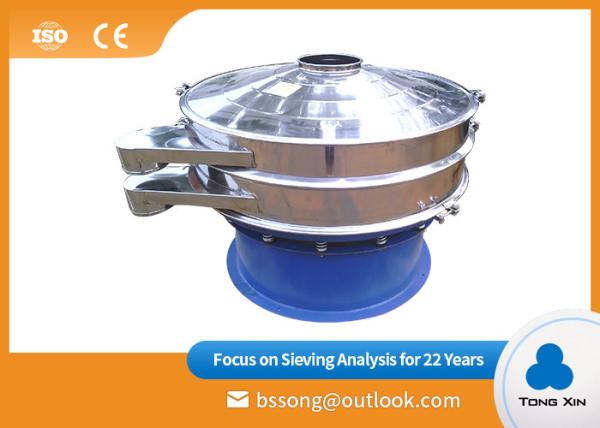

Milk Powder 0.75kw Fully Enclosed Structure Rotary Vibrating Screen Machine
Introduction
Machinery Separators effectively grade and separate materials on up to four mesh decks. These revolutionary vibratory separators are designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation.
It benefits from major advances in separation technology providing large improvements in sieving accuracy, capacity, noise levels and upgradable compared with traditional spring suspension separators.
Apply in Industry
| Chemical Industry | Colophony, dope, industry leechdom, cosmetic, paint |
| Grinding Materials | Alumina, quartz, slurry, kaoline, carborundum, sprayer dust. |
| Food Industry | Sugar, amylum, rice powder, milk powder, soybean milk, angel cake, sauce, juice. |
| Paper Making Industry | Dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling. |
| Metallurgy, Mining Industry | Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate. |
Technical Parameters
| Model | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 |
| Material | Carbon steel, stainless steel |
| Screen Diameter | 330 | 560 | 730 | 900 | 1100 | 1400 | 1700 | 1886 |
| Sieving Area | 0.07 | 0.24 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.7922 |
| Specification | 2—500Mesh |
| Layer | 1-3 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-3 | 1-3 |
| Power (kw) | Vibration Motor | 0.25 | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 3.7 |
| General Motor | | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3.0
|
Working Principle
The vertical vibration motor is used as the excitation source, and eccentric heavy hammer is installed on the upper and lower ends of the motor.
The rotation motion of the motor is converted into horizontal, vertical and inclined three-dimensional motion, which is then transmitted to the screen surface for screening.
Adjusting the phase Angle of the upper and lower ends can change the movement trajectory of the material on the screen surface. So that the material quickly through the screen, to achieve the purpose of screening.
Function
Advantages
| High capacity | Real improvements are achieved over conventional round separators in terms of increased capacity |
| Greater accuracy | Full material flow on all 4 mesh screens providing accurate grading and separation |
| Lower noise | less than 75dB |
| Ease of operation and lower maintenance | The design of the vibrator housing on these separators allow for standard motors to be used rather than vibratory type, keeping maintenance costs to a minimum. |
| Ease of maneuverability | The separators stand on 4 rubber feet, and can be moved about a plant quite readily by means of pallet or forklift truck. |
Our Service
1. We provide 12 months quality warranty;
2. We have professional engineer team ensure to provide the most professional equipment;
3. Professional engineers team can choose the right equipment for you;
4. We can provide thorough after-sales service to ensure the proper use of machine.
5. We can provide OEM customization.
If you want to get more information of product, please contact us!
